More power, more machine mass, and more capacity for machining large work-pieces with precision
About Momentum
MOMENTUM offers a range of heavy-duty, ram-type vertical turning lathes for turning large and/or heavy workpieces engineered to take big, deep cuts with ease. Configurations include turning only and turning plus simple milling with C-axis. MOMENTUM's unique full-wrap, arc-shaped column offer superior rigidity when cutting the toughest of material.

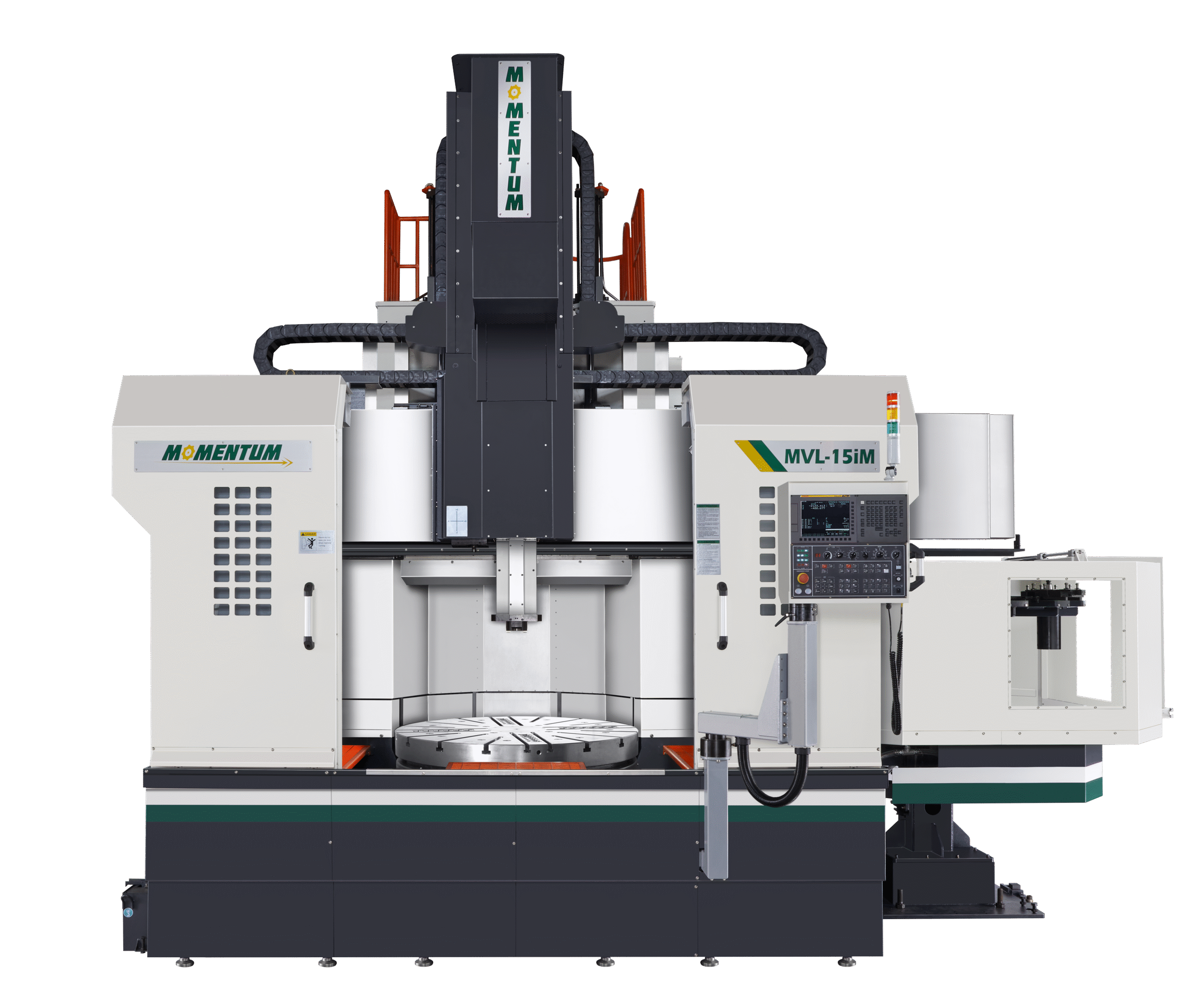

See the Momentum MVL-15iM vertical turning lathe with milling capabilities demonstrating the all-new Super Ram at IMTS 2024 in booth #339100 along the prestigious Front Row of the metal cutting pavilion.
Vertical Turning Lathes
Industry's Beefiest
Momentum’s MVL-series is among the industry’s beefiest, featuring: massive key components; full-wrap columns; full-length cross rails; robust rail elevation and locking; single-piece saddles; floor-mounted tool changers; oversize spiral gear drives; geared axis motors; thrust and radial table bearings; and more machine weight and horsepower!
Flat Bed Lathes
Distinguishing Features
Momentum’s unique MFB flat bed lathe series provides, in addition to its standard tool turret, a second set of Z-axis guideways with its own dedicated sub-carriage and head. This enables the interference-free use of long, deep-hole boring or drilling attachments. The MFB is perfect for large cylindrical parts and similar parts needing internal machining.
Machines In-Stock & Ready For Immediate Delivery in the USA
Momentum MVL-10HD
Vertical Turning Lathe
Price Available Upon Request
SN 100012 | FOB Factory
FANUC 01-TF
62.99" Max Swing Dia, 39.56" Table Dia.
35.43" Max Turning Height
35.44" z-axis travel
-25.39" ~ 33.46" x-axis travel
11,000 lbs Max Table Load
15+1 Tool ATC, CAT-50
Momentum MVL-15iM-SR
Vertical Turning Lathe
IMTS Machine
SN 150013 | FOB Chicago, IL
FANUC 01-TF
62.99" Max Swing Dia, 57.08" Table Dia.
52.36" Max Turning Height
39.37" z-axis travel
-32.28" ~ 39.37" x-axis travel
17,637 lbs Max Table Load
Featuring All-New Super Ram™
Momentum MVL-16M-SR
Vertical Turning Lathe
Shipping in July 2024
SN 160069 | FOB Factory
FANUC 01-TF
79.7" Max Swing Dia, 62.99" Table Dia.
62.99" Max Turning Height
39.37" z-axis travel
-40.15" ~ 48.03" x-axis travel
22,046 lbs Max Table Load
Featuring All-New Super Ram™
Momentum MVL-16
Vertical Turning Lathe
Price Available Upon Request
SN 160061 | FOB Factory
FANUC 01-TF
78.74" Max Swing Dia, 62.99" Table Dia.
62.99" Max Turning Height
39.37" z-axis travel
-40.15" ~ 48.03" x-axis travel
22,046 lbs Max Table Load
15+1 Tool ATC, CAT-50
Momentum MVL-20
Vertical Turning Lathe
Price Available Upon Request
SN 200013 | FOB Factory
FANUC 01-TF
98.42" Max Swing Dia, 78.74" Table Dia.
70.87" Max Turning Height
49.2" z-axis travel
-51.18" ~ 59.05" x-axis travel
33,069 lbs Max Table Load
15+1 Tool ATC, CAT-50
Momentum MVL-20M
Vertical Turning Lathe
Price Available Upon Request
SN 200016 | FOB Factory
FANUC 01-TF
98.42" Max Swing Dia, 78.74" Table Dia.
70.87" Max Turning Height
49.2" z-axis travel
-51.18" ~ 59.05" x-axis travel
33,069 lbs Max Table Load
16+1 Tool ATC, CAT-50
Momentum MFB-4050
Flat Bed Lathe
Special Year-End Price
Available Upon Request
SN 4050004
FOB Houston, TX
FANUC 01-TF + 10.4" color screen
51.96" Max Swing over way covers
44.48" Max Swing over main carriage
192" Distance Between Centers
A-20 (12.2") Spindle Bore
26,400 Mass Between Centers
12 Tool Stations
Momentum MVL-12M VTL Walkaround with Doug Schulte
Senior Product Manager and Machine Tool Google, Doug Schulte walks us around the Momentum MVL-12M vertical turning lathe with milling capabilities to learn more about the features and benefits.
