Large Capacity CNC Machines IN-STOCK in the USA!
Select Machining Technologies recognizes the critical importance of timely delivery for manufacturers producing large, complex parts. That’s why we’ve invested in an extensive inventory of large-capacity Soraluce, Ibarmia, Geminis, and Momentum CNC machines, all well-equipped and showcased in distributor showrooms across the U.S.
These machines are thoughtfully configured with the latest innovations, ensuring they’re equipped to machine your largest parts with both efficiency and exceptional precision.
IBARMIA THC12 Multiprocess
Configured for 5-axis contour machining and turning, this Ibarmia THC12 Multiprocess universal 5-axis multitasking machining center with automatic pallet changer is under power in Connecticut and available for immediate delivery to your machine shop floor!
Offering ample capacity with a powerful 112 HP spindle this 5-axis multiprocess machining center will dramatically enhance your shop's capabilities and capacity.
- Automatic Pallet Changer, 39.37" diameter platters
- 49.21" Swing for turning
- 47.24" X-axis, 51.18" Y-axis, 39.37" Z-axis Travels
- Main Spindle 112 HP, 12,000 RPM, HSK-100, 147 ft.lbs.
SORALUCE TA35
The popular Soraluce TA35 Machining Center features a Universal Head for 3+2 5-axis machining of complex parts in a sturdy bed mill design and is available for immediate delivery to your shop floor!
- Universal Head 2.5˚x 2.5˚
- 138” x 47” x 59” Travels
- Main Spindle 43 HP, 450 ft-lbs torque, 7,000 RPM
- DAS (Dynamic Active Stabilizer)
- Heidenhain TNC7 CNC
SORALUCE SAD40
An all-new Soraluce SAD40 Multitasking Machining Center, with traveling column architecture is currently under power in Houston Texas, at Hartwig Machine Tools, and is available for immediate delivery to your shop floor!
Identical to the SAD40 shown at IMTS 2024 this massive capacity CNC mill features a Universal Head, Built-in Rotary Table and is equipped with DAS Dynamic Active Stabilizer which eliminates chatter. Additional features...
- Fixed Table, Traveling Column Configuration
- 157" x 39" Table with Integrated 39” Rotary Table
- Stepless Universal Head 0.001˚x 0.001˚
- 157” x 47” x 59” Travels
- Main Spindle 43 HP, 450 ft-lbs torque, 7,000 RPM
- DAS (Dynamic Active Stabilizer)
- Heidenhain TNC7 CNC

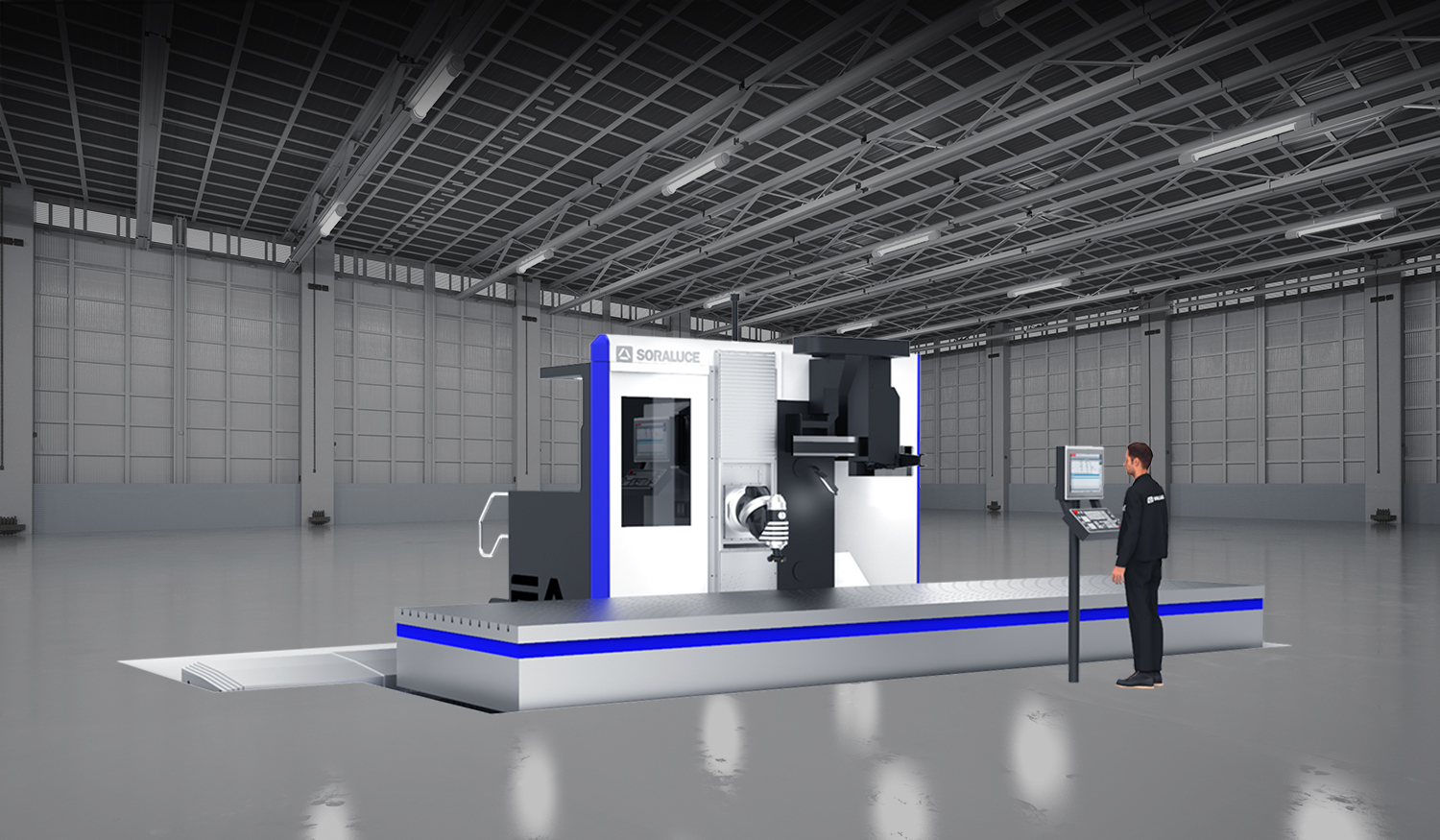

SORALUCE FA60
A Large Capacity SORALUCE FA60 Floor Type Milling / Boring Machine is currently in-stock and under power in Connecticut, ready to ship immediately to your shop floor. This well equipment machining center features the following...
- 236.2" / 59" / 47" Travels
- Universal Head 2.5º x 2.5º
- 43 Horsepower, 450 ft-lbs of Torque
- 40-Tool Automatic Tool Changer
- Heidenhain TNC 640 CNC control

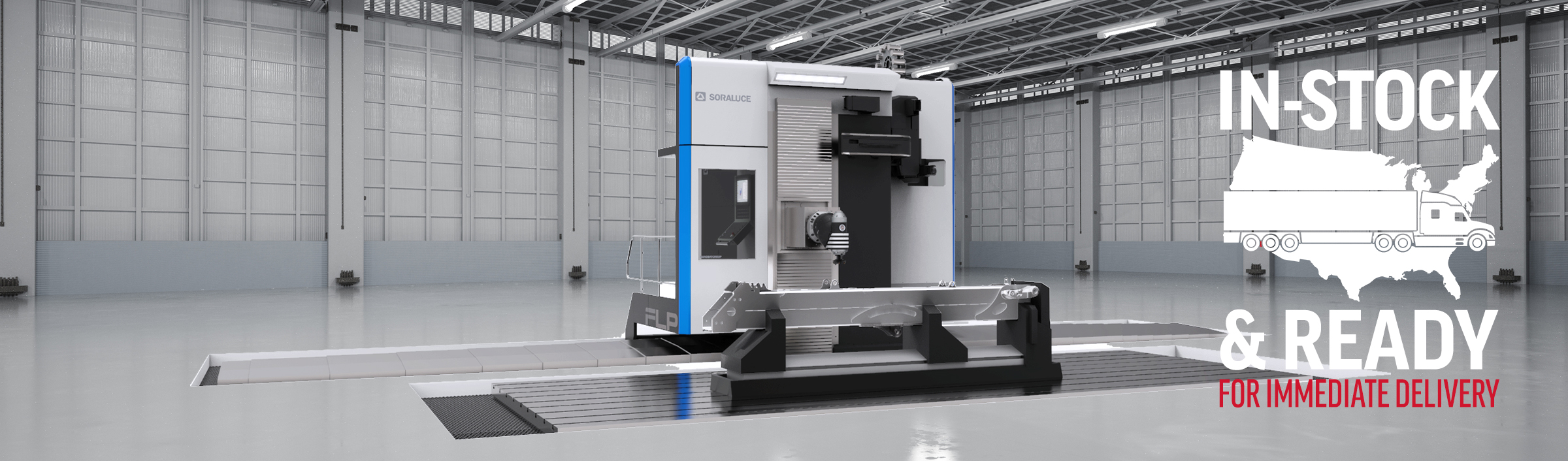

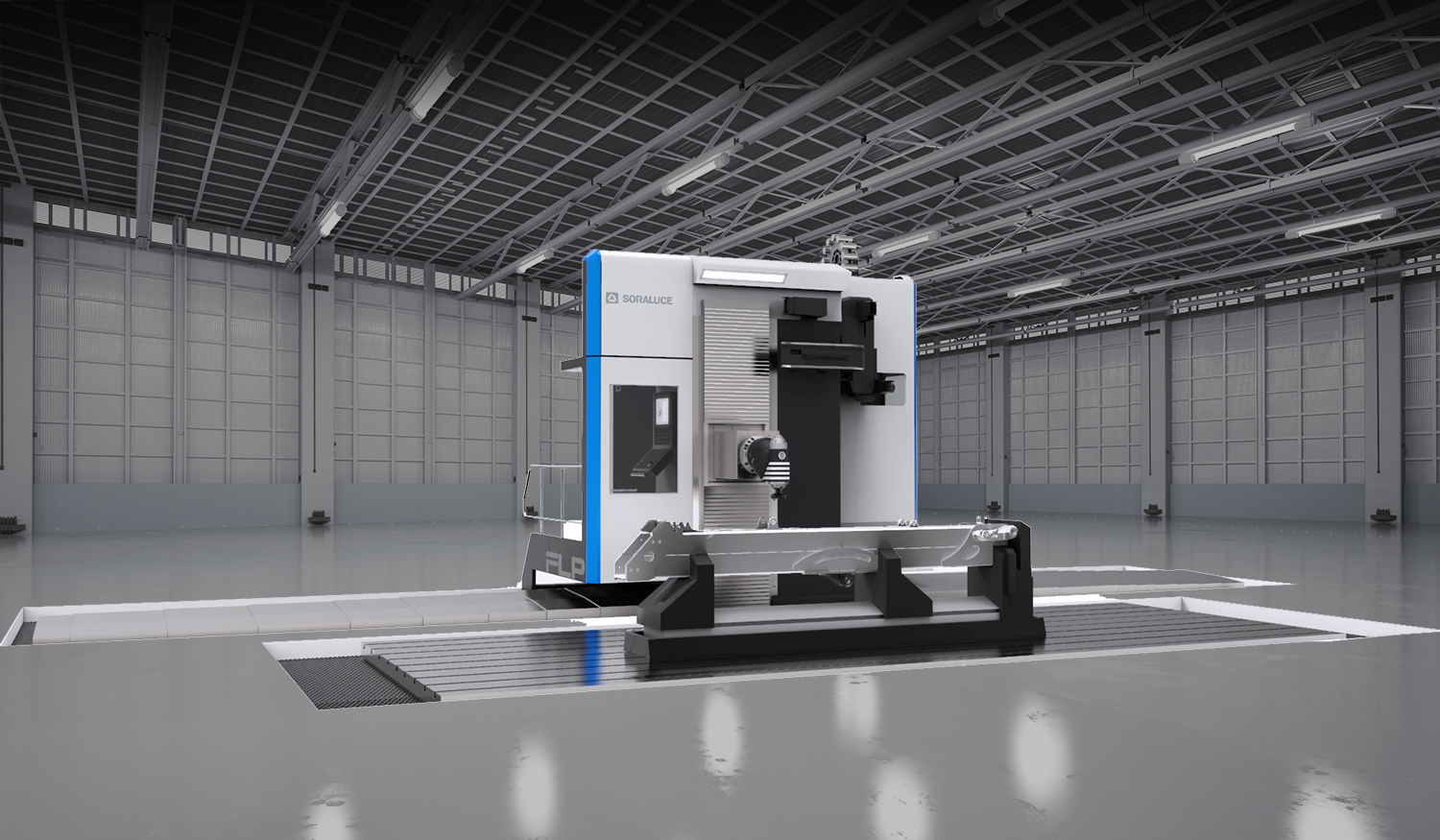

SORALUCE FLP12.000
A SORALUCE FLP12.000 Floor Type Milling / Boring Machine with 472" of longitudinal travel is currently in-stock and available to ship immediately to your shop floor. This large capacity machining center with universal head features the following...
- 472.4" / 86" / 63" Travels
- Universal Stepless Head 0.001º x 0.001º
- 57 Horsepower, 663 ft-lbs of Torque
- 40-Tool Automatic Tool Changer
- Heidenhain TNC 640 CNC control
IBARMIA ZVH45 L3000D STAR
A Large Capacity machining center with A-axis tilting spindle head and a built in 4th axis rotary table for 5-axis contouring and turning...
- 118.11” / 31.5” / 31.5” Travels
- 118.11” x 33.5” Fixed Table with Built in 4th Axis Rotary Table
- 43.33” Swing, C-axis Rotary Table +/- 360 deg
- A-axis Head Tilting +/- 115 deg
- 60 HP, 12K RPM, 147 ft.lbs torque, CAT40-Big Plus
- 60 Tool ATC
- Fanuc 31i-B control
